Winjall

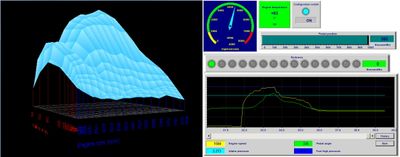

Winjall is the software used to tune all our ECUs.
It runs on PC operating systems Windows© XP (SP3), 7, 8, & 10.

Winjall: V9.9.0.0

NEW FEATURES AND IMPROVEMENTS:

• Modification for professional licenses of the possibility to take the hand remotely with all the access rights on a customer ECU that you have locked: the custommer PC must also have installed this version 9.9.0.0 (see document “Operation on the Tunewares”, page 13).
• Display of the scopes of flywheel and phase teeth allowed by the new ECUs firmware versions.
• Selection of colors allowing colorblind people to have a better vision (see document “Preferences”, page 7) (v9.8.0.0).
• Possibility to directly unlock the ECUs without a professional license, but precautions should be taken because the operation empties the ECU (v9.4.0.0).
• Operates with Microsoft Windows XP SP3, 7, 8, 10 and 11. 32 and 64 bits.

Winjall User's Guide (pdf)

Download

Winjall_ENU-9.9.0.0 (zip)

Download

How to Install Winjall

1. If Winjall is opened, close it.
2. If the CAN-USB device (for Commander ECUs and injectors drivers ECUs) is connected to your PC, remove it.
3. Download new Winjall .zip file and save it in a directory on your hard drive.
4. If you have already installed a previous Winjall version, you have to uninstall it before installing the updated version.
a. In the software list, select 'Winjall' (end of list) then 'Uninstall'. Follow uninstall instructions.
b. In the software list, select 'Windows driver - FTDI driver package D2XX driver' then 'Uninstall'. Follow uninstall instructions.
c. In the software list, select 'Windows driver - FTDI driver package VCP driver' then 'Uninstall'. Follow uninstall instructions.
5. With the explorer, double click on the downloaded Winjall .zip file, then double click on Setup. At the question on files extraction, answer 'Extract All'.
6. If the installation does not automatically start: in the new directory created by the extraction, double click on Setup (application).

Version History

V 9.8.0.0

1) Selection of colors allowing colorblind people to have a better vision (see document “Preferences”, page 7).
2) Recording and reload on the hard disk of the Dashboard scopes History (see document “Dashboard”, page 11).
3) Modification of the data by [Ctrl][Alt][*] et [Ctrl][Alt][+] et [Ctrl][Alt]Right Click (see document “ECUs tuning”, pages 21 and 22).

V 9.7.0.0

1) First version to accept the new “Advance” and “Meteor” ECUs ranges.
2) Conversion of maps in Csv format to work with a spreadsheet.
3) For professional licenses, possibility to take the hand remotely with all the access rights on a customer ECU that you have locked.
4) Possibility to directly unlock the ECUs without a professional license, but precautions should be taken because the operation empties the ECU.

V 9.4.0.0

1) First version to accept the new "Advance" ECUs range.

2) Improvement of the "Specific map editing" function.

3) Possibility to directly unlock the ECUs without a professional license, but precautions should be taken because the operation empties the ECU.

V 9.3.0.0

1) First version to accept the new "Challenger7" ECU and the "Advance" ECUs range.
2) Installs new drivers on 32 bits and 64 bits operating systems.

V 9.1.0.0

1) New operation of oscilloscopes "History mode" in the Winjall Dashboard.
2) Improved security on the functions of data importation between Tunewares.
3) Operates with Microsoft Windows XP SP3, 7, 8 and 10. 32 and 64 bits.

V 9.0.0.0

1) Allows the write protection of the Tunewares. The saved Tuneware cannot be re-written with the same name. This allows to protect a tuning from a subsequent overwriting.
2) Allows the data recoding and conversion into CSV files by batches, even without a professional license.
3) Operates with Microsoft Windows XP SP3, 7, 8 and 10. 32 and 64 bits.

V 8.0.0.0

Operates with Windows 8 and 10.
